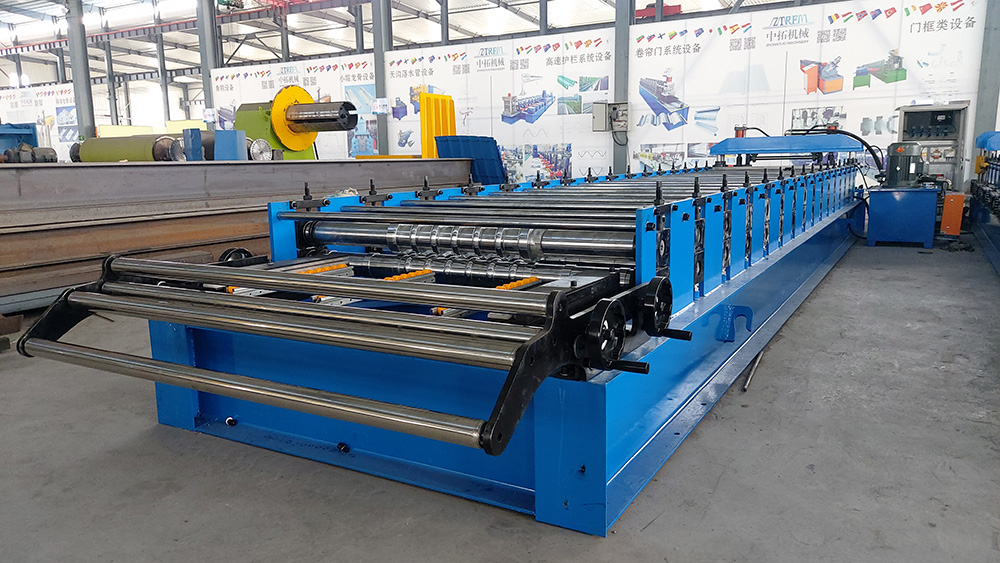

Corrugated roof panel roll forming machine is mainly producing steel roof/ wall sheet .The final products have three types,corrugated sheet and trapezoidal sheet. and glazed tile.As we know, steel roof/ wall sheet is widely used in large span factory building, warehouse, office buildings, villas, roof, cold storage, air purification room, stores, kiosks, and temporary housing.

The specifications of the Corrugated roof panel roll forming machine:

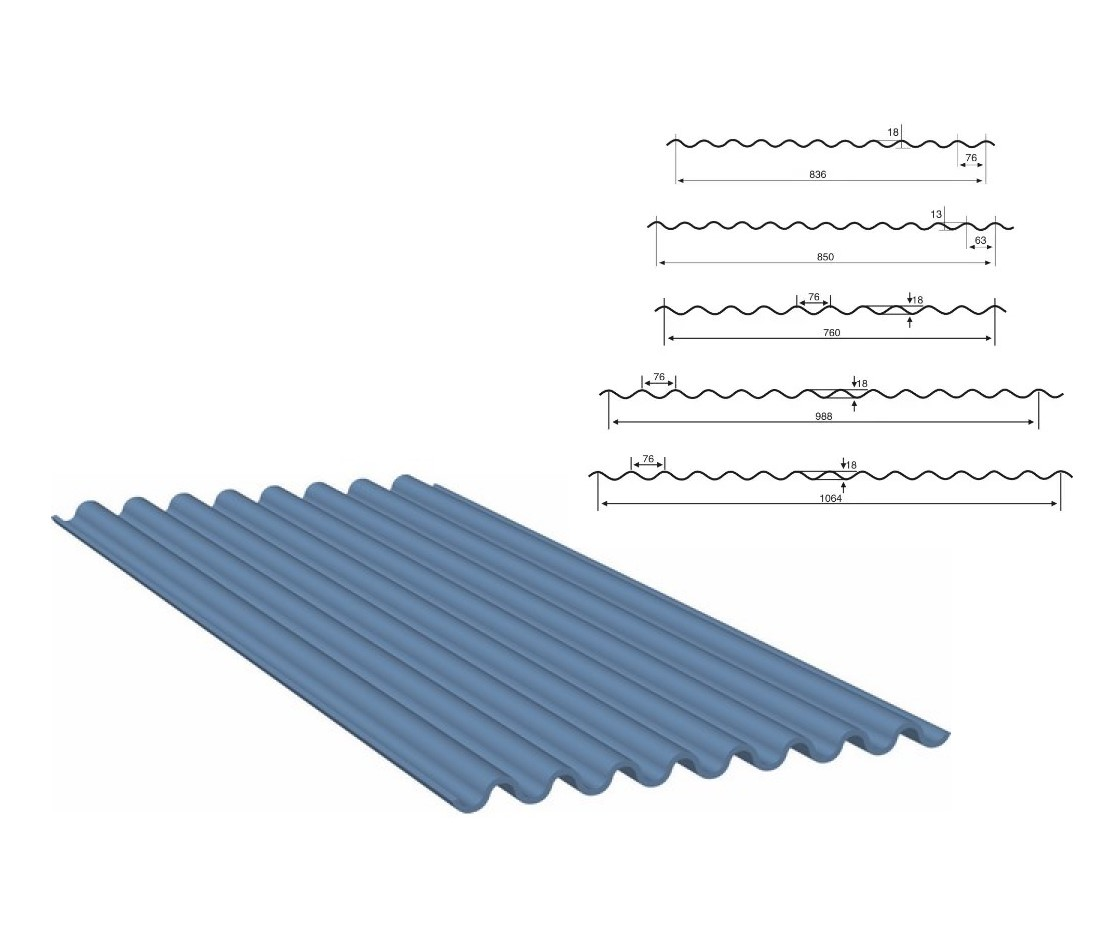

1.Profile drawing:

2.Components of the Corrugated roof panel roll forming machine:

1. Manual decoiler: 5 tons/7 tons/10 tons

2. Main roll forming machine: Famous brand motor

3. Control system: Delta / Siemens brand

4. Hydraulic system: Chinese famous brand

5. Receive table: 3 meters

3.Process flow

4.Manual decoiler (Hydraulic decoiler is also available)

1. Capacity: 5 tons /7 tons/10 tons

2. Coil diameter: 450-550mm

3. Coil outer diameter: 1500mm

4. Coil width: 1250mm(as customers' profile drawing)

5.Main roll forming machine

1. Feeding device: with two hand wheels to adjust the feeding of the material,with bearing inside of the feeding rollers.

2. Machine body: 350H steel welded

3. Machine frame: 18mm middle plate welded

4. Roller station: 16 stations

5. Roller material: 45# steel with quenched treatment and hard chroming

6. Shaft diameter: 80mm,solid

7. Shaft material: 45# steel with tempering treatment

8. Motor power: 5.5 kw

9. Speed: 0-20m/min

10. Transmission: By Double chains

11. Voltage: 380V,50HZ,3PH

6.Hydraulic pressing cutting system

1. Blade material: Cr12,with quenched treatment

2. Hydraulic power: 4 kw

3.Cutting tolerance: +/-1 mm

4. Cooling system: With fan cooling

5. Pressing & Cutting type: Hydraulic

6. Feature: Low noise and high performance

7.Control system

1. Description: PLC

2. PLC brand: Delta from Taiwan

3. Frequency converter brand: Delta from Taiwan

4. Encoder: Omron

5.Function: Automatic control the length,quantity and batch

8.Product run out table

1.Type: Manul (Auto stacker is also available)

2.Length: 3 meters

9.Application scenarios
