Floor Decking Sheet Roll Forming Machine is used to produce floor decks. Floor deck is the plate which supports the floor concrete that is called the pressed steel plate, also called the floor bearing plate and the steel bearing plate. It has three types: Open floor deck,necked floor deck,closed floor deck.
Floor Decking Sheet Roll Forming Machine:
In short,Roof decking floor profiles are typically used as the structural component. The steel decking floor is a cold-formed steel sheet. Metal Decking use in roof and floor systems for supporting the concrete or insulating membrane of a roof. Its design and construction magnify properties of the steel. It causes to create a high strength-to-weight ratio that lowers the material, handling, and erection costs.In addition to, Steel Floor decking roll forming machine
This is the new type we engineer called decking machine, used for building surface panel. Metal Deck Roll Forming Machine is a modern, pre-eminent solution for concrete floor work.
Here are some popular profile drawings for your reference:
Work flow of galvanized steel structural decking sheet making machine:
Uncoiling→ Feeding material into machine →Roll forming → Auto shearing →Products receiving table
1 Machine nameGalvanized steel structural decking sheet making machine
2 Dimension11000*1500*1500mm
3 Weight15T
4Total power30KW
6Voltage 380V/50HZ/3PH
7MaterialGI,GL
8 Forming speed15m/min
9 Material thickness0.8-1.5mm
10Tolerance±1mm

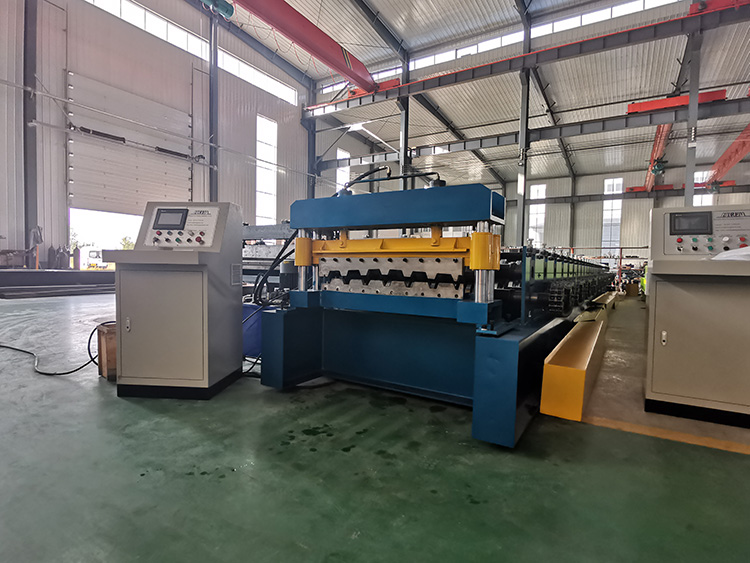

Main pictrues of galvanized steel structural decking sheet making machine:
Other Accessories of galvanized steel structural decking sheet making machine:
1.Manual decoiler
Working capacity:5T
Coil inner diameter:900-1250mm
2.PLC control cabinet
PLC brand:Delta,Siemens or Mitsubish (as requested)
Low voltage components:Schneider
All PLC control cabinent are quipped with aviation plug, very easy to install,saving labor and time.
3.Hydraulic station
Hydraulic power:5.5KW
Hydraulic oil:46# hydraulic oil
With cooling fan which can prevent the oil from overheating,and big electromagnetic valve are more stable,there are marks on the pipes which are easy to connect.
Here are some pictures of the construction with floor deck panel:
Here are some final buildings with floor deck panel for your reference:
