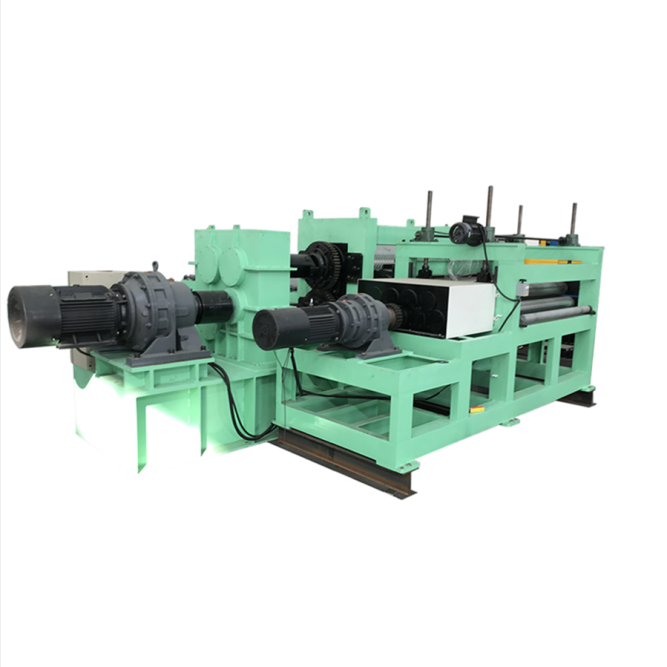

ZTRFM metal embossing machine is widely used in embossing rollers, color steel embossing, embossing forming machinery and equipment, decorative materials, non-ferrous metals and other industries for surface embossing
Overall processing: 3M abrasive precision grinding, advanced heat treatment process quenching, multiple stress relief, quenching, high-efficiency micro-crack hard chromium plating
Roll surface accuracy: mirror surface roughness ra0.01 (finish grade 14), cooling or heating temperature difference ≤±1℃, thermal deformation ≤0.01mm, flatness ≤0.005mm, runout ≤0.005mm, coaxiality ≤0.005mm. The surface hardness is hrc55-58, and the hardness after chrome plating and polishing is hv1000 (HRC62). Uses: suitable for calendering, matte treatment of PP, Pt, PE, ABS, PVC, etc., leather ironing and calendering, paper calendering, matte treatment
Surface treatment: Hard chrome plating hardness above hv900 (conventional hv500-60), roughness ra0.01 (level 14) (if there are special anti-corrosion requirements, the bottom layer can be nickel-plated), hardness above 1250, roughness ra0.05 or above, The service life of the hard chromium coating is 5-10 times longer than that of the electrodeposited coating
Processing range: diameter 320-350mm, length 550-700mm
Processing accuracy: temperature difference ≤±1℃, thermal deformation ≤0.01mm, flatness, runout, coaxiality ≤0.01mm (advanced large-scale special grinder to ensure concentricity)
Transmission mode: adopts precision non-backlash gear transmission, high precision
Processing patterns: various geometric patterns, leather patterns, stripes, three-dimensional patterns, embossments and other patterns can be customized
If you are interested in metal embossing machine or other roll forming machines,please contact with us.
