We delivered an eps/rockwool sandwich panel production line to one of our domestic clients on the 18st of August, and this production line will make both metal roofing and wall sandwich panels with both EPS or Rockwool available as the core or insulated materials.

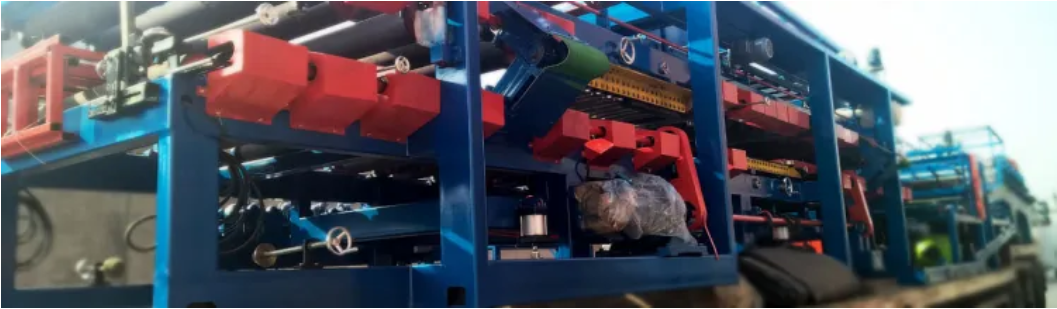

The EPS and rockwool sandwich panel production line consists of decoilers, roll forming machines, hat purlin roll former, a simple slitter, feeding tables for core materials like EPS/XPS board or Rockwool/Glass Mineral wool strips etc, edge bending machine, main pressing machine and fly-saw tracking cutter.
The finished products metal roofing or wall sandwich panels with are usually made from pre-painted steel as the facial materials (top and bottom layer) and EPS/XPS board or Rockwool/Glass Mineralwool strips as the core materials. The whole production line will be running fully automatically (EPS/XPS board or Rockwool/Glass Mineralwool strips will be fed into the machine manually) including roll forming, pressing and cutting through PLC control system.
Brief Description of the EPS and Rockwool Sandwich Panel Production Line:
Z Lock wall profile:
Covering Width: 1150mm or 1200mm
Feeding Sheet Width: Upper Sheet 1200mm or 1220mm;
Lower Sheet 1200mm or 1220mm
Feeding Sheet Material: GI, PPGI; thickness 0.3-0.8mm
Thickness of the Panel: 50mm to 250mm
Core Material: EPS & Rockwool
Z Lock roof profile:
Covering Width: 1000mm
Feeding Sheet Width: Upper Sheet 1220mm;
Lower Sheet 960mm
Feeding Sheet Material: GI, PPGI; thickness 0.3-0.8mm
Thickness of the Panel: 50mm to 250mm
Core Material: EPS & Rockwool
Pessing Machine:
Roller Diameter: 150mm
Hardness of Roller: HRC60
Thickness of Rubber Layer: 10mm
Control System: Panasonic PLC, Touch Screen, Transducer
Encoder: Omron Brand
Current: 380V, 50Hz, 3-phase
GEIT （ZTRFM） can provide all kinds of roll forming machines
