What is the application of IBR Roofing Sheet Roll Forming Machine for Metal Roofing?
It is suitable for industrial and civil buildings, warehouses, special buildings, roofs, walls and interior and exterior wall decorations of large-span steel structure houses. It has light weight, high strength, rich color, convenient and quick construction, earthquake resistance, fire protection, rain protection, and longevity. Long, maintenance-free and other characteristics have been widely promoted and applied.
The specifications of the IBR Roofing Sheet Roll Forming Machine
Profile drawing(we can design as customer's profile drawing):
2.Components of the IBR Roofing Sheet Roll Forming Machine:
1. Manual decoiler: 5 tons/7 tons
2. Main roll forming machine: Famous brand motor
3. Control system: Delta / Siemens brand
4. Hydraulic system: Chinese famous brand
5. Receive table: 3 meters
3.Process flow
4.Manual decoiler (Hydraulic decoiler is also available)
1. Capacity: 5 tons /7 tons
2. Coil diameter: 450-550mm
3. Coil outer diameter: 1500mm
4. Coil width: 1200mm(as customers' profile drawing)
5.Main roll forming machine

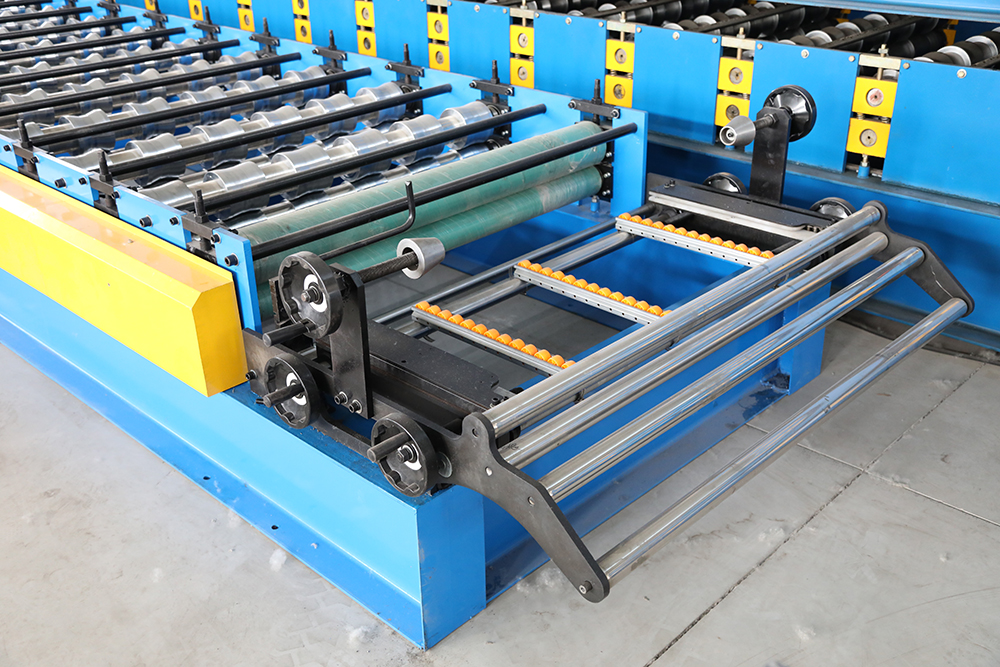

1. Feeding device: With two hand wheels to adjust the feeding of the material,with bearing inside of the feeding rollers.
2. Machine body: 350H steel welded
3. Machine frame: Middle plate welded
4. Roller station: 18 stations
5. Roller material: 45# steel with quenched treatment and hard chroming
6. Shaft diameter: 80mm,solid
7. Shaft material: 45# steel with tempering treatment
8. Motor power: 5.5 kw
9. Speed: 0-20m/min
10. ransmission: By double chain
11. Voltage: 380V,50HZ,3PH
6.Cutting system
1. Blade material: Cr12,with quenched treatment
2. Motor power: 4 kw
3. Cutting tolerance: +/-1 mm
4. Cooling system: With fan cooling
5. Cutting type: Hydraulic cutting
6. Feature: Low noise and high performance
7.Control system
1. Control system: PLC
2. PLC brand: Delta from Taiwan
3. Frequency converter brand: Delta from Taiwan
4. 5 Encoder: Omron
5. Function: Automatic control the length,quantity and batch
8.Product run out table
1. Type: Manul (Auto stacker is also available)
2. Length: 3 meters
